Steel Sheet Pile Hammer
Steel Sheet Pile Hammer Steel Sheet Pile Hammer Steel Sheet Pile Hammer Steel Sheet Pile Hammer Steel Sheet Pile Hammer Steel Sheet Pile Hammer Steel Sheet Pile Hammer Steel Sheet Pile Hammer Steel Sheet Pile Hammer Steel Sheet Pile Hammer

Steel Sheet Pile Hammer

$25000-$30000 USD ($)/Set

Product Details:

  • Weight 2200 Kilograms (kg)
  • Product Type 360 degree rotating
  • Size VS250
  • Color Red/Yellow
  • Usage for excavators mounted
  • Body Material Steel
  • Type Power Unit
  • Supply Ability : 1000 Set Per Year
  • Click to view more
X

Price And Quantity

  • $25000-$30000 USD ($)/Set
  • 1.00 - 10.00 USD ($)/Set
  • 1 Set

Product Specifications

  • 2200 Kilograms (kg)
  • Steel
  • 360 degree rotating
  • 1 year
  • VS250
  • Red/Yellow
  • for excavators mounted
  • Power Unit
  • Hydraulic

Trade Information

  • Shanghai
  • Cash Advance (CA)
  • 1000 Set Per Year
  • 14 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Wooden Box
  • Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India
  • CE, ISO

Product Description

We are providing a qualitative range of Steel Sheet Pile Hammer for excavator It is made from premium quality raw material that will provide strength to the pile. It is offered by us in various sizes and varied energy range. Our product is applicable in various industries. Steel Sheet Pile Hammer for excavator is stringently checked on different quality parameters and can also be customized as required by customers.

Steel Sheet Pile Hammer has been made from first-class quality raw material so as to bestow high strength to the pile. This is accessible with higher efficiency and have more efficiency than other brands. In addition, these have clips of longer working life. Steel Sheet Pile Hammer is made of extra hard material. It has good organized hose arrangement and can deal with breakage. This is used to break the steel sheet piles of vertical interlocking system. It allows for 360 degree rotation and has extended functional life.

-------------------------

SWT  Excavator Sheet Pile Driver for solar plant sheet pile hammer main features and parameters

(1) We use big torque hydraulic motor with more than 10000N/M.

(2) Higher efficiency comparing to other brand

(3) The clips longer working life with extra hard material

(4) Good organized hose arrangement avoiding broken

SWT  Excavator Sheet Pile Hammer Driver

SWT  Excavator Sheet Pile Driver for solar plant sheet pile hammer Working Parameters:

 Items         Specification
     For Steel Sheet Pile For Concrete Pile
Excavator(Ton)   20-25 27-32 33-40   40-48 50-70  20-30  33-40
Models   VS250 VS330  VS400  VS450  VS500  VS280  VS380
Max Frequency(rpm)   3000 3000  3000  3000  3000  2800   2800
Eccentric Force(Ton)   46.2 56.5  61.8  69.5  77.0  44.7  57.2
Swivel Torque(Nm)    9200 11000    9200
Swivel Speed(rpm)  12
Max Working Pressure(Bar)  315
Oil Flow(LPM)   189 240  270  324  324  189  270
Driver Weight(Ton)   1.7 1.8  2.15  2.2  2.3  1.73  2.05

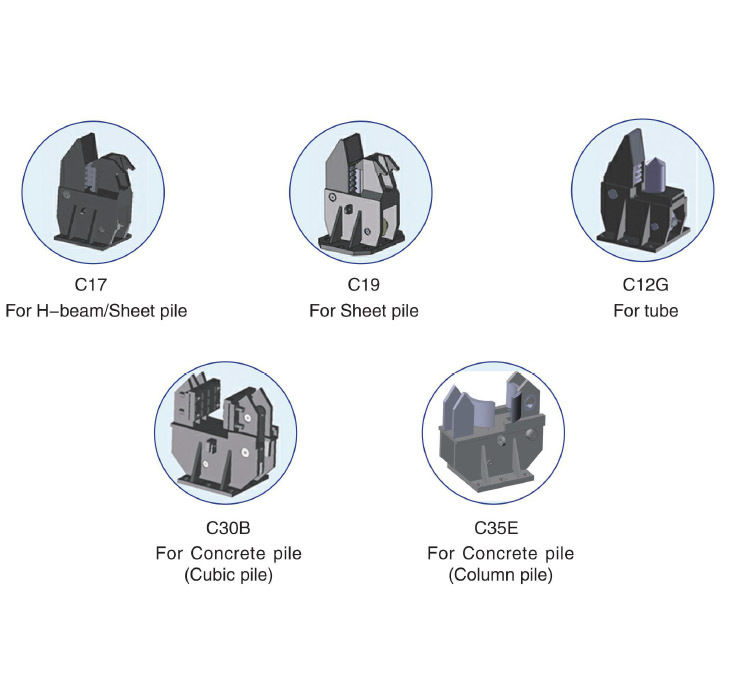

Clamp    C17,C30B    C19,C35E C17,C30B  C19,C35E
Weight  C17:520KG,C19:550KG,C30B:455KGC35E:530KG
Goose-neck Arm  A200C(K),A250C,A300C
Goose-neck Arm Weight(Kg)  A200C:750KG,A200CK:755KG,A250C:850KG,A300C:950KG
